Bovine

Embryo Freezer

Embryo Freezer

PLATFORMS FEATURE

  • Ultra-precision controlled rate freezing
  • Temperature control resolution = 0.0625° C
  • Fully user programmable set points
  • Seeding set point adjustment increments of 0.1 C
  • Freeze end set point adjustment increments of 0.1 C
  • Controlled rate freeze adjustment 0.01 C per minute increments
  • Temperature LCD display resolution = 0.1° C
  • Integrated power supply
  • Tamper resistant 3 way key switch
  • Vibration and shock resistant exterior
  • Extremely durable ballistic nylon skin

Controlled Rate Freezer Dimensions

  • Length: 11.75 inches
  • Width: 9.0 inches
  • Height: 12.75 inches
  • Weight: 12 pounds

Embryo Freezer

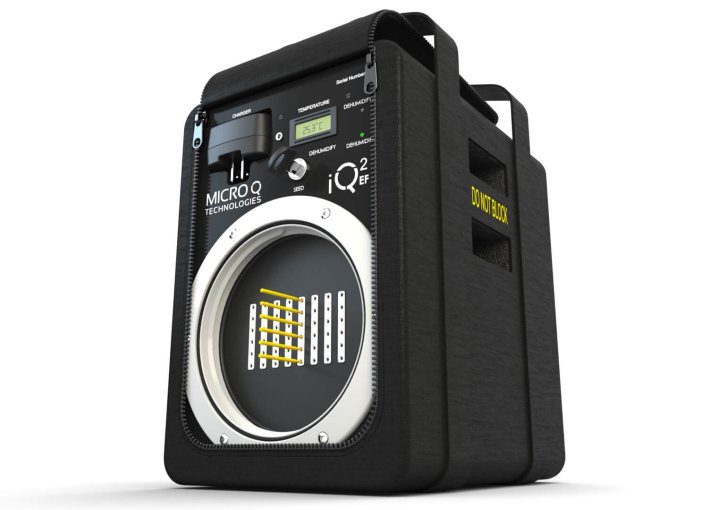

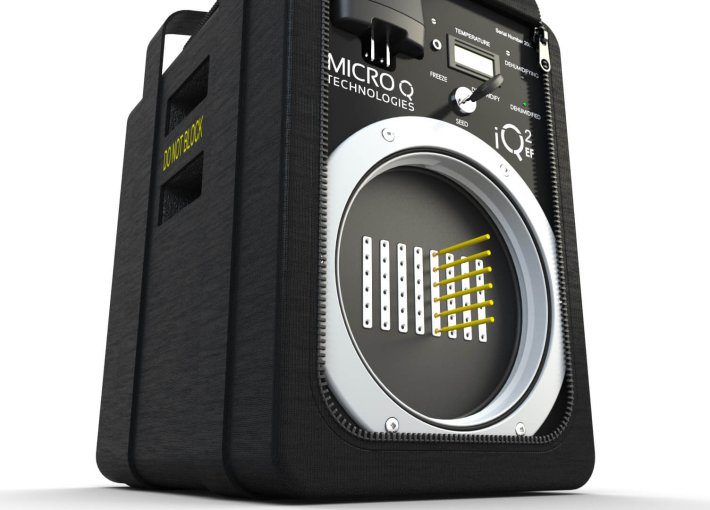

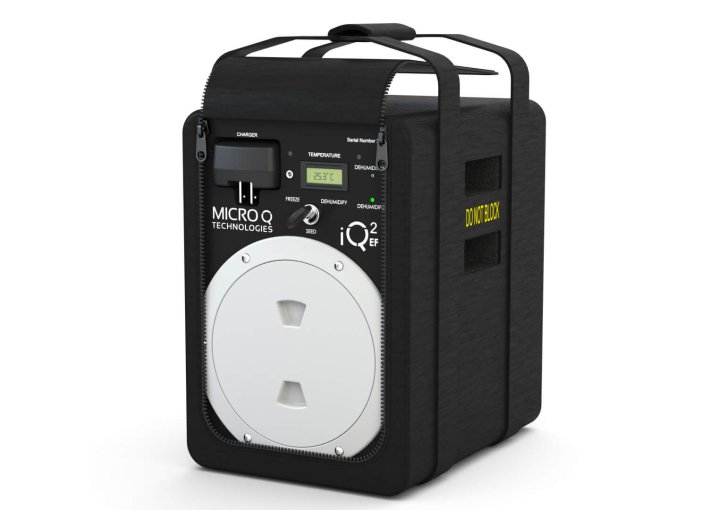

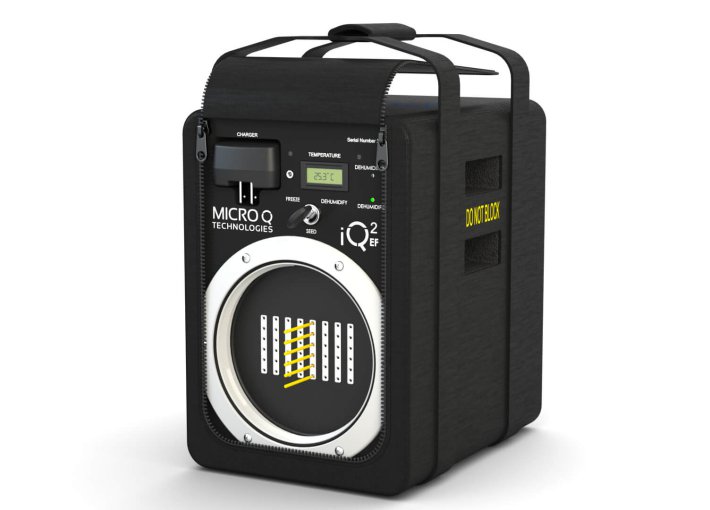

Micro Q Technologies is proud to introduce world’s first and only, truly portable liquid nitrogen free controlled rate freezer utilizing its patented ultra-precision temperature control technology.

The Micro Q iQ2 EF is built based on simplicity of use as well as ultimate in portability, 3 way deliberate action key switch completely eliminates user errors. The switch has Dehumidification, Seed and Freeze positions. Seed and Freeze modes are user programmable for seeding temperature as well as rate of freeze and ending temperature set point.

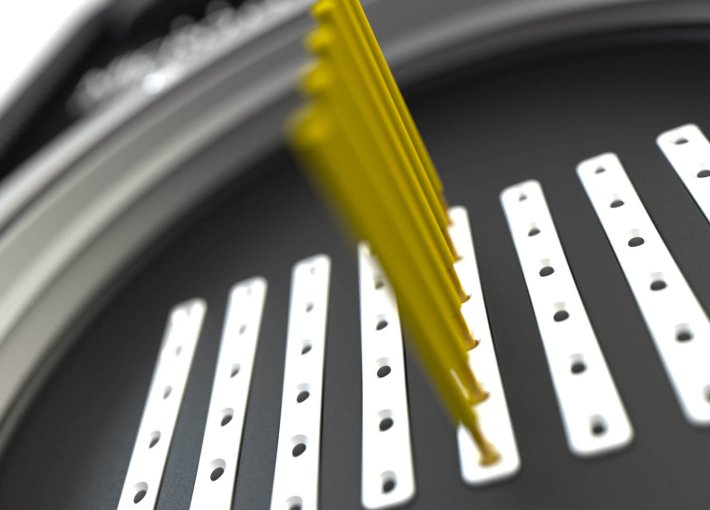

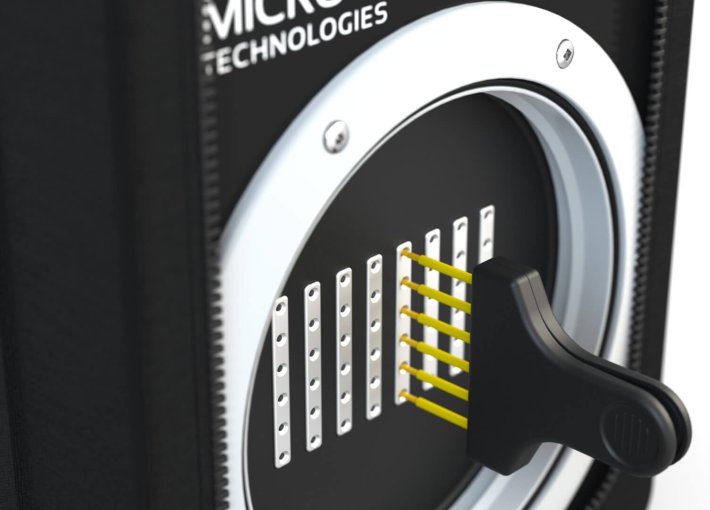

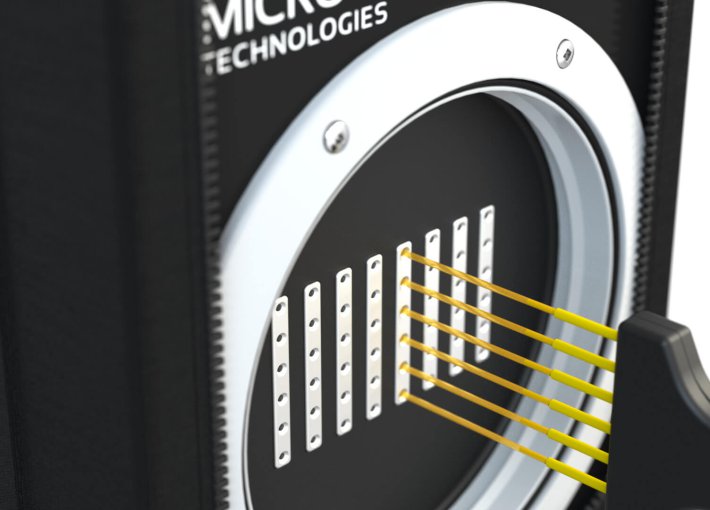

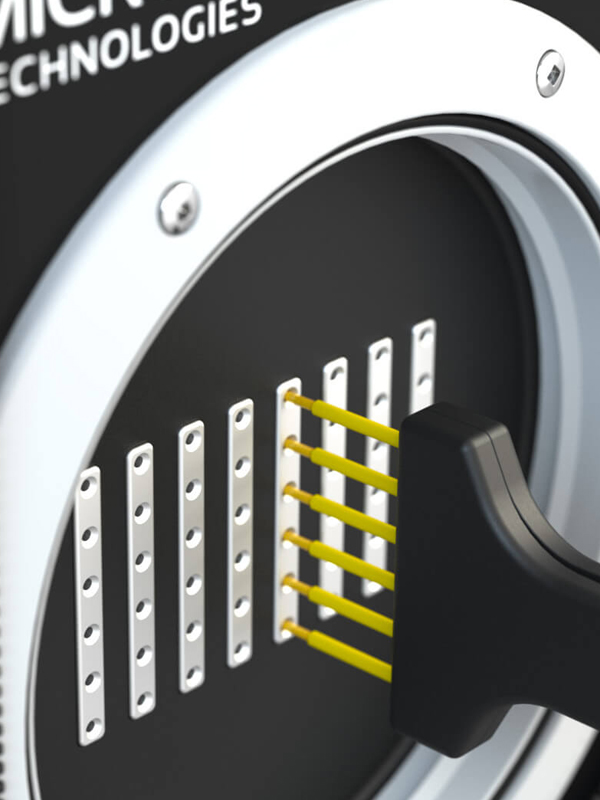

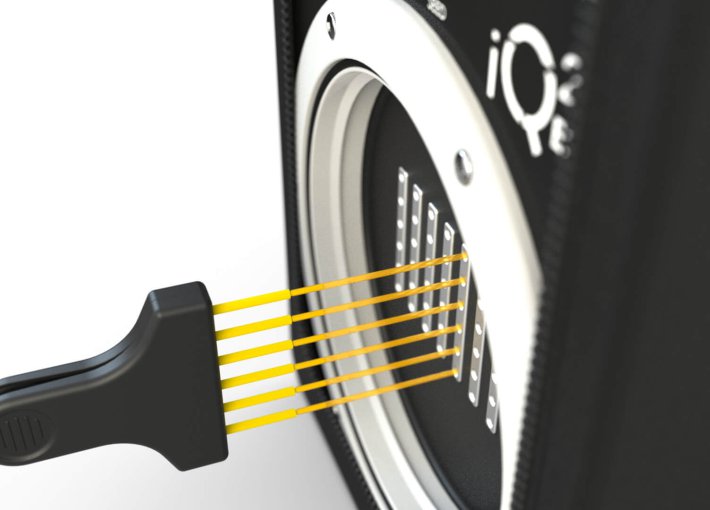

The 48 0.25 ml straw core has been specifically designed to accommodate individual in vitro produced (IVP) and in vivo embryo straws and provide 360 degree precision contact with all sides of the 0.25 ml straw, the device is non directional and can operate horizontally as well as vertically. The straws have been separated from each other significantly for ease of seeding using specifically designed tool 6 straws at one time.

The battery powered version can provide 2 to 3 complete freezing cycles under its own state of the art proprietary built in battery system during transportation.

Customized larger capacities, 100 straws or greater available upon request.
